Name: Hybrid-bond diamond wheel for carbide drill bit flute grinding (CNC)
Brand: ZHENGZHOU SHINE ABRASIVES CO.,LTD
SKU: 4V2 1A1 14A2 9A3
Price: 50.00 USD
Availability: InStock

Aperçu Produits Roues de meulage CNC

Hybrid-bond diamond wheel for carbide drill bit flute grinding (CNC)

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	Shine Abrasives
Certification:	ISO
Numéro de modèle:	4V2 1A1 14A2 9A3

Conditions de paiement et expédition:

Quantité de commande min:	2 pièces
Prix:	FOB
Détails d'emballage:	une en carton
Délai de livraison:	5 jours ouvrables
Conditions de paiement:	LC, T/T
Capacité d'approvisionnement:	1000 PCS en une semaine

Contact

Description de produit détaillée

Type de roue:	Droit	Épaisseur:	2-4 mm
Pression maximale:	5Mpa	tasse:	7/8 pouce
Code SH:	6804211000	Matériel:	Oxyde d'aluminium / Carbure de silicium / Diamant / CBN
Matériau du cadre:	Rapide	Taper:	Une seule rangée
Usage:	Affûtage	Durabilité:	Haut
roueDiamètre:	100mm - 400mm	Type de liaison:	Vitrifié / Résine / Métal
Alésage:	12,7 mm - 32 mm	Taille:	4-12 pouce
Régime maximum:	6000 tr/min
Mettre en évidence:	hybrid-bond diamond wheel for carbide drill bits , CNC grinding wheel for flute grinding , diamond grinding wheel with hybrid bond

Hybrid-bond diamond wheel for carbide drill bit flute grinding (CNC)

Hybrid-bond diamond wheel for carbide drill bit flute grinding (CNC).hybrid bond diamond wheel uses a diamond layer held by a mix of binders/materials (commonly a resin + metal/plastic matrix, or a bond system engineered to combine properties). For carbide drill bit fluting/fultting (I assume you mean flute grinding/fulting), these wheels are usually specified for profile/helix grinding and flute regrind where you need consistent geometry and smooth chip-breaking performance.

Technical Parameters:

Parameter	Detail
Package	Carton Box
Shape	Cup, Straight, Cylindrical, Etc.
Warranty	1 Year
Material	Carbon Steel
Max Pressure	5MPa
Bond	Vitrified, Resin, Metal, Etc.
Application	CNC Grinding, Flute Grinding, Gash Grinding, Relief Angle Grinding
Max Temperature	150℃
Size	4-12 Inch
Max Speed	100 m/s

Wheel contacts the carbide along the flute relief/profile.
CNC controls infeed, feed rate, wheel speed, and dwell time to shape flutes consistently.
Coolant/air blast removes swarf and controls temperature.
The hybrid bond is designed so the wheel maintains shape while still releasing fresh diamond when needed (depending on how it’s formulated.

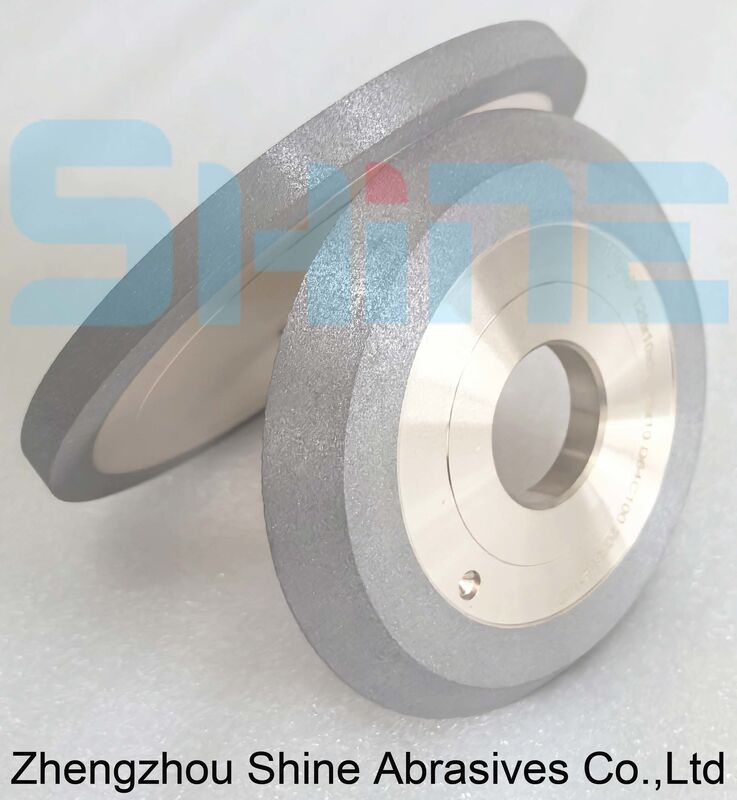

Hybrid-bond diamond wheel for carbide drill bit flute grinding (CNC) 0
